    • Press and hold the POWER button (left) to turn the remote on

    • Press and hold the POWER and SETTINGS button to turn the remote off

    • Press and hold the SETTINGS button to enter the settings menu

    • To accelerate, press the joystick forward

    • To brake press the joystick backwards

    • To go into reverse, hold the joystick all the way back and press the SETTINGS button

    • When the receiver is plugged into the ESC it will cause UART interference resulting in programming issues. If you have issues, disable the UART communication temporarily by going to SETTINGS -> PORTS CONFIG -> UART To ESC -> OFF

    • When you are done programming, change the value back To ESC A

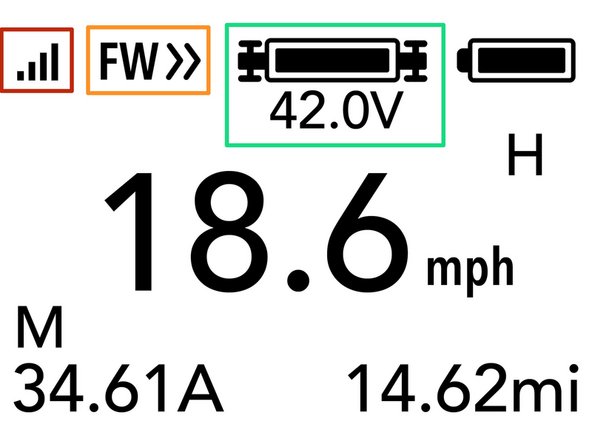

  1. This indicates the remote to receiver connection status. When connected it will appear
    • This indicates the remote to receiver connection status. When connected it will appear

    • This indicated the boards direction. It will either display FW>> for forwards or RW>> for reverse

    • This indicates the skateboards battery level. If you think the values are wrong, double check your battery settings in the board parameters menu

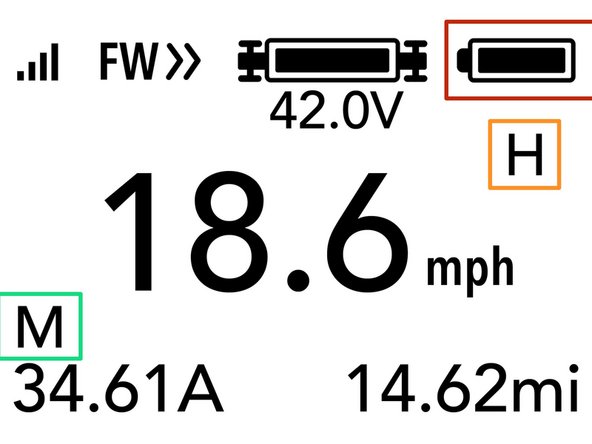

  2. Indicated the remotes battery level
    • Indicated the remotes battery level

    • Indicates the acceleration mode. Either H, M, or L. You can change the acceleration values in the remote config menu

    • Changes from M to B occasionally to indicate the value below. M stands for MOTOR current and B stands for BATTERY current.

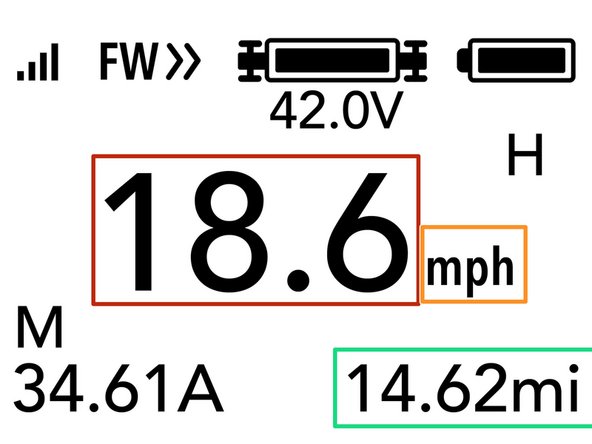

  3. Indicates the current speed
    • Indicates the current speed

    • Can either be mph or kmh. Change the value in the board parameters menu

    • Total trip distance. View your lifetime odometer by viewing the remote config menu

    • When turning the remote on you will not be able to apply throttle for a short period of time. To skip this, apply full brake and then you can begin to use the throttle
